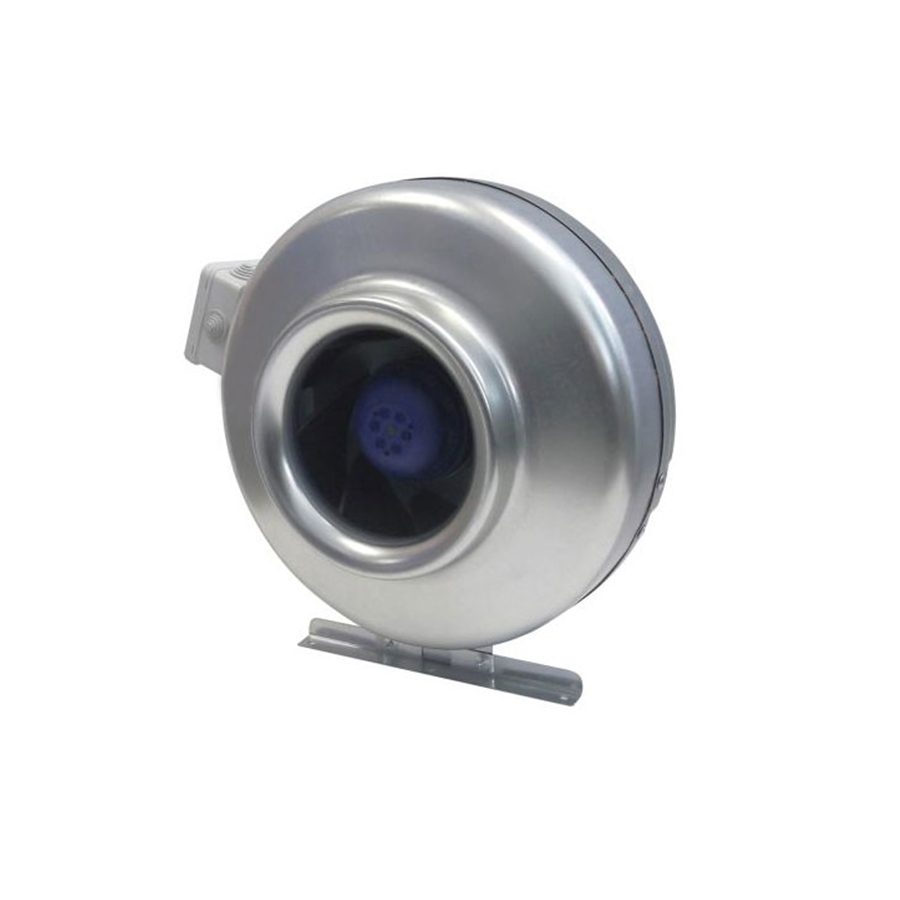

ROUND CHANNEL AIRONE FAN

ROUND CHANNEL AIRONE FAN
● Channel round fans (VKK) are used in supply and exhaust ventilation systems of industrial and public buildings. They are compact and easy to mount in any position.
Round channel fans are designed to move non-explosive gas with a temperature from -40 ° C to + 60 ° C, containing solid impurities of not more than 100 mg / m3, not containing sticky substances and fibrous materials, in a temperate climate of the 2nd category of placement according to GOST 15150-69.
● The fan speed can be controlled using a stepless triac speed controller or transformer speed controller.
● Standard sizes of VKK fans diameter: 100, 125, 160, 200, 250, 315.
● The casing is made of sheet steel with subsequent painting. To increase the tightness of the body of its part, its parts have special flanges. The housing has a minimum flange length of 23 mm to 28 mm for proper attachment to air ducts.
● Engines are used with an external rotor with an impeller with backward curved blades, with integrated thermal contacts.
● Fans are installed directly in circular ducts. Installation at any angle relative to the axis of the fan is allowed. A mounting bracket is supplied for quick and easy mounting of the fan on a wall or ceiling.
● Channel round fans (VKK) are used in supply and exhaust ventilation systems of industrial and public buildings.
