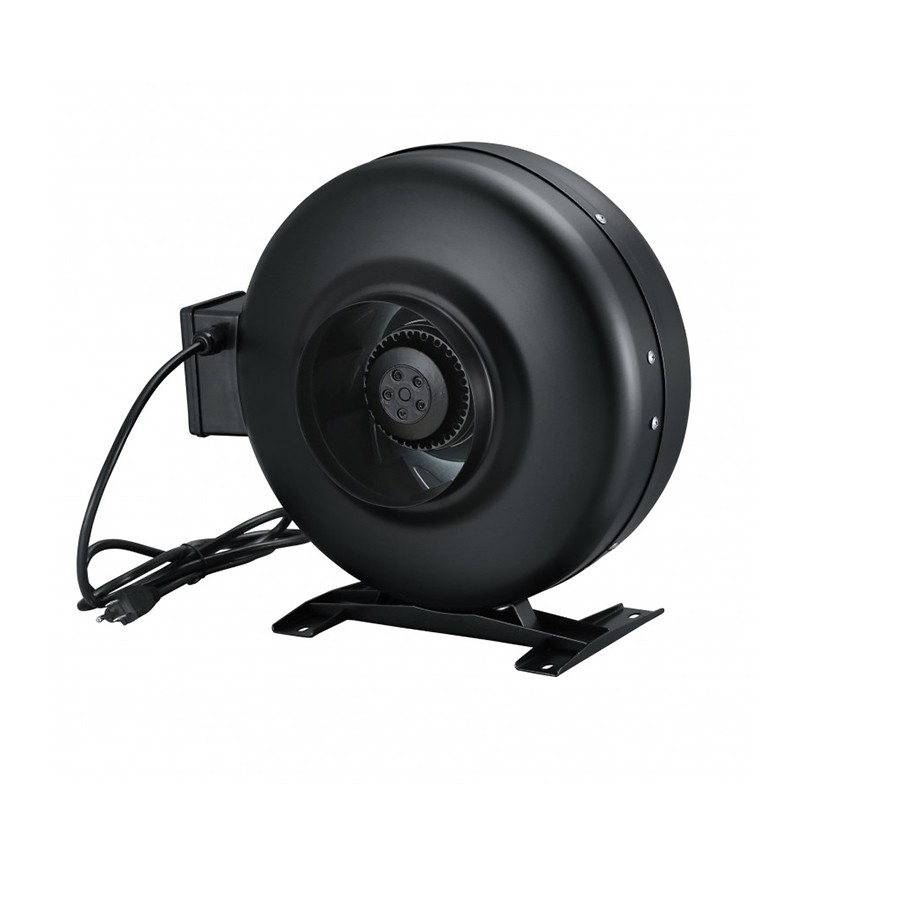

ROUND CHANNEL FAN complete with plug for power outlet

ROUND CHANNEL FAN complete with plug for power outlet

Compact design, fan housing made of galvanized steel, powder coated. Powder-coated fans are well protected against corrosion. The fan blades are bent back. An electric motor with an external rotor is used.
● Channel round fans (VK) are used in supply and exhaust ventilation systems of industrial and public buildings. They are compact and easy to mount in any position.
● Channel round fans are designed to transport non-explosive gas of environments with a temperature not exceeding 60 ° C, containing solid impurities of not more than 100 mg / m3, not containing sticky substances and fibrous materials, in a temperate climate of the 2nd placement category according to GOST 15150-69 , with an ambient temperature up to plus 40 ° С.
● The speed of the fans can be controlled using a stepless triac speed controller or a 5-step transformer.
● Standard sizes of VK fans diameter: 100, 125, 150, 160, 200, 250, 315.
● For electrical connection, the fans are equipped with a plug with a cord, 1 m long.
● If you need to connect the MTY speed controller, you must remove the plug.
Then the connection must be made in accordance with the connection diagram (see WIRING DIAGRAM).
● Fans are installed directly in circular ducts. Installation is possible at any angle relative to the axis of the fan, as well as in wet rooms and on the street without additional protection (when connecting ducts to the fan on both sides).
● The kit comes with a mounting bracket with screws for quick and convenient mounting of the fan on a wall or ceiling, a plug for connecting to an outlet with a 1m cord.
Such fans are widely used in hotels, large auditoriums, supermarkets, train stations, airports and other public buildings in general ventilation systems.
